10km Rangefinder Module

STA-D1012Y adopts the 1535nm erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, compact structure, high precision, long measuring distance and human eye safety.

Maximum measuring range: 10000m (vehicle) 12000 m (wall)
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤102g

Details





Features of STA-D1012Y Laser Rangefinder module



Safe and harmless to eyes
Using 1535nm pump Q-switched erbium glass laser,safe for eyes.
High reliability and long service life.



Easy to operate and secondary development
Full duplex RS422 electrical interface,equipped with instruction set and communication protocol,convenient user secondary development.



Exchange optimization
With its very small and ultra-light design and optimized power consumption,the STA-D1012Y is ideal for a variety of handheld devices,weapon mounting applications,portable thermal imaging systems and lightweight sensor suites for use in UAV or UGV.



Large measuring range and high precision
Maximum measuring range ≥ 12km (wall)
Measurement range of 2.3m × 4.6m vehicles ≥ 10km

Ranging accuracy ±1m.High precision,more accurate distance measurement results.
Weight ≤ 102g.



Applications of STA-D1012Y Rangefinder Module







Product features



Integrated design of the whole structure, shock resistance, vibration resistance, high reliability, strong environmental adaptability;

The use of unique erbium glass laser integrated configuration design and end-face multi-point sealing installation, high durability, long working life, eye safety;

The internal interfaces of the circuit all adopt the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.



Product performance index



Item

Index

Model

STA-D1012Y

Operating wavelength

1535nm ±10nm

Ranging range

80m-12000m

Ranging capability

12000m

 Large target, visibility ≥ 25km

10000m

Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 4.6m vehicles

Humidity

80%

Ranging accuracy

±1m

Accuracy rate

≥98%

Range resolution

50m

Divergence angle

≤0.5mrad

Ranging frequency

Once,1hz,5hz

Size

66mm×59mm×42mm

Voltage

5V14V

Working power consumption

Average power consumption: ≤ 3W

Standby power consumption

0.01W

Working temperature

-40℃+60℃

Storage temperature

-55+70℃

Weight

102g

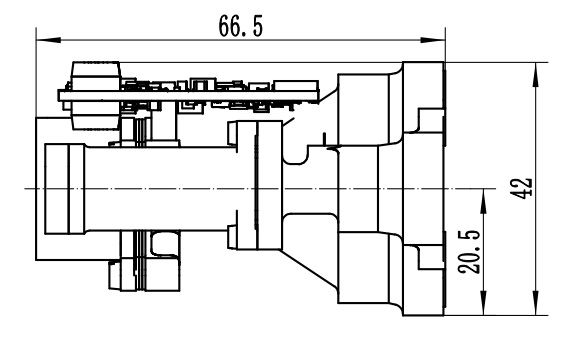

Structure installation interface
