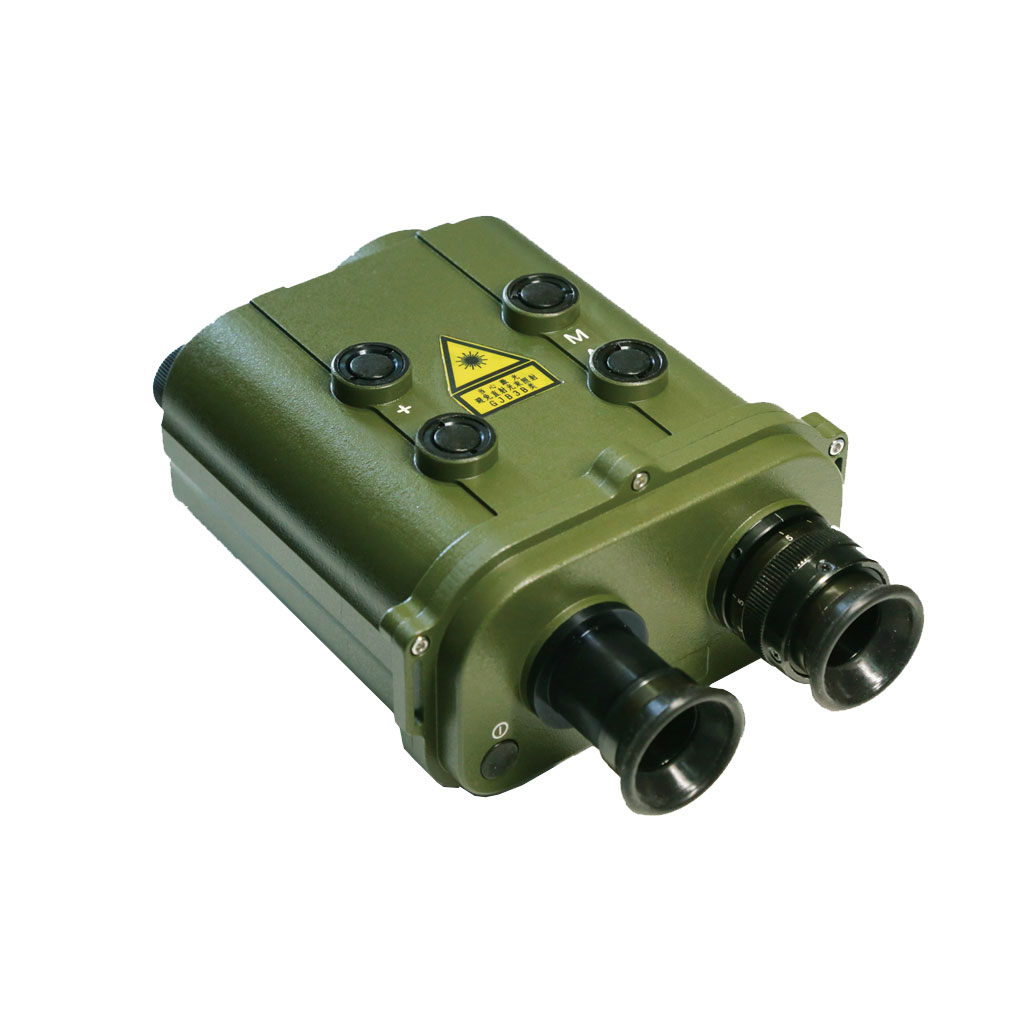

15km Laser Rangefinder Binoculars
Binocular Magnification: 7X
Maximum range :19999m
Effective range ≥15000m
Measuring accuracy ±1m
Detection≥98%
Operating temperature: -40~+60℃
Weight ≤1.5kg
Features of STA-T15LB Laser Rangefinder Binoculars
High quality optical system
●Magnification: 7X, using multilayer coated optical lens, clear and bright vision.
ND:YAG laser
●Using 1064nm Nd:YAG laser, no need to cooperate with the target to achieve remote measurement.
●High reliability and long service life.
Signal transmission/interface
●Standard RS232 serial interface and mechanical connection port can easily realize signal transmission and realize target positioning with angle measuring instrument.
EXcellent Performance
●STA-T15LB laser rangefinder binocular telescope is a collection of modern electronics, optics, laser technology as one of a new generation of military telescope-type rangefinder, with small size, light weight, long range, easy operation, seismic waterproof and other characteristics.
Large measuring range and high precision
●Maximum measuring range ≥ 19999m
●Effective measuring range ≥ 15000m
●Distance measurement accuracy ± 1m. High precision and more accurate ranging results.
●Weight ≤ 1.5kg.
Applications of STA-T15LB Laser Rangefinder Binoculars
Product features
●Using Nd:YAG laser, wavelength 1.064 microns, effective range ≥ 15000 meters, measurement accuracy ± 1 meters;
●Remote measurement of targets without cooperation;
●With digital distance gating optional;
●Equipped with a night aiming crosshair backlight illuminator, even in a completely black environment can easily read;
●Ranging function: measuring linear distance, angle, horizontal distance, vertical distance, etc.
●External RS232 data interface;
●All metal structure seismic waterproof;
Main technical parameters
|
Ranging performance |
|
|
Minimum ranging |
≤50m |
|
Max ranging |
19999m |
|
Effective range |
≥15000m |
|
Range accuracy |
±1 m (30m ~ 1000m), ±2 m (1000m ~ 15000m) |
|
Distance resolution |
≤30m |
|
Repetition frequency |
6 times/min, continuous work; In case of emergency, 10 times/min, rest for 1 minute. |
|
Distance strobe range |
10 m -6000 m continuously adjustable, and can be displayed in digital form in the eyepiece its precise data. |
|
Quasi side rate |
≥98% |
|
Ranging function |
measuring linear distance, angle, horizontal distance, vertical distance, etc. |
|
Optical properties of binoculars |
|
|
Magnification |
7X |
|
Field of view |
7 degrees |
|
Exit pupil diameter |
6 mm |
|
Exit pupil distance |
20 mm |
|
Resolution |
8 seconds |
|
Usage performance |
|
|
Power
|
Use two rechargeable lithium batteries of model 18350 with a capacity of 800 mAh. After the battery is fully charged, it will measure distance at room temperature (25±5 ℃) for more than 600 times. During the ranging process, there is a "battery symbol" on the panel display to show the battery power. When the power is low, the battery should be charged immediately. But it can still range 20 times in an emergency. |
|
Data interface |
Standard RS232 serial interface |
|
Environmental adaptability |
|
|
Operating temperature |
-40~+60℃ |
|
Storage temperature |
-50~+70℃ |
|
Maximum relative humidity |
95-98% |
|
Structure |
Fully sealed design, seismic and waterproof |
|
Overall dimensions and weight |
|
|
Overall dimensions |
202×150×90 mm (Max) |
|
Weight |
≤1.5kg |
