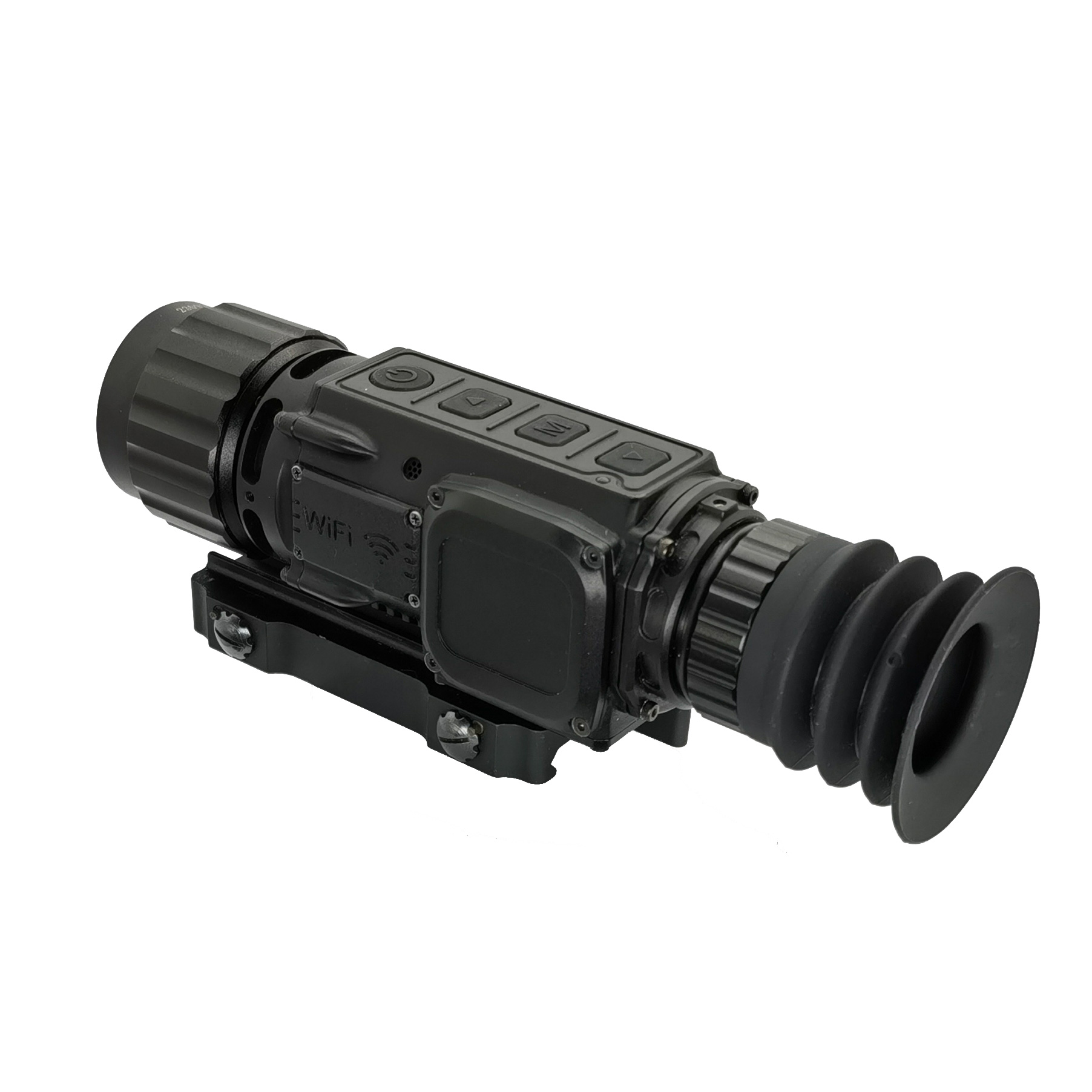

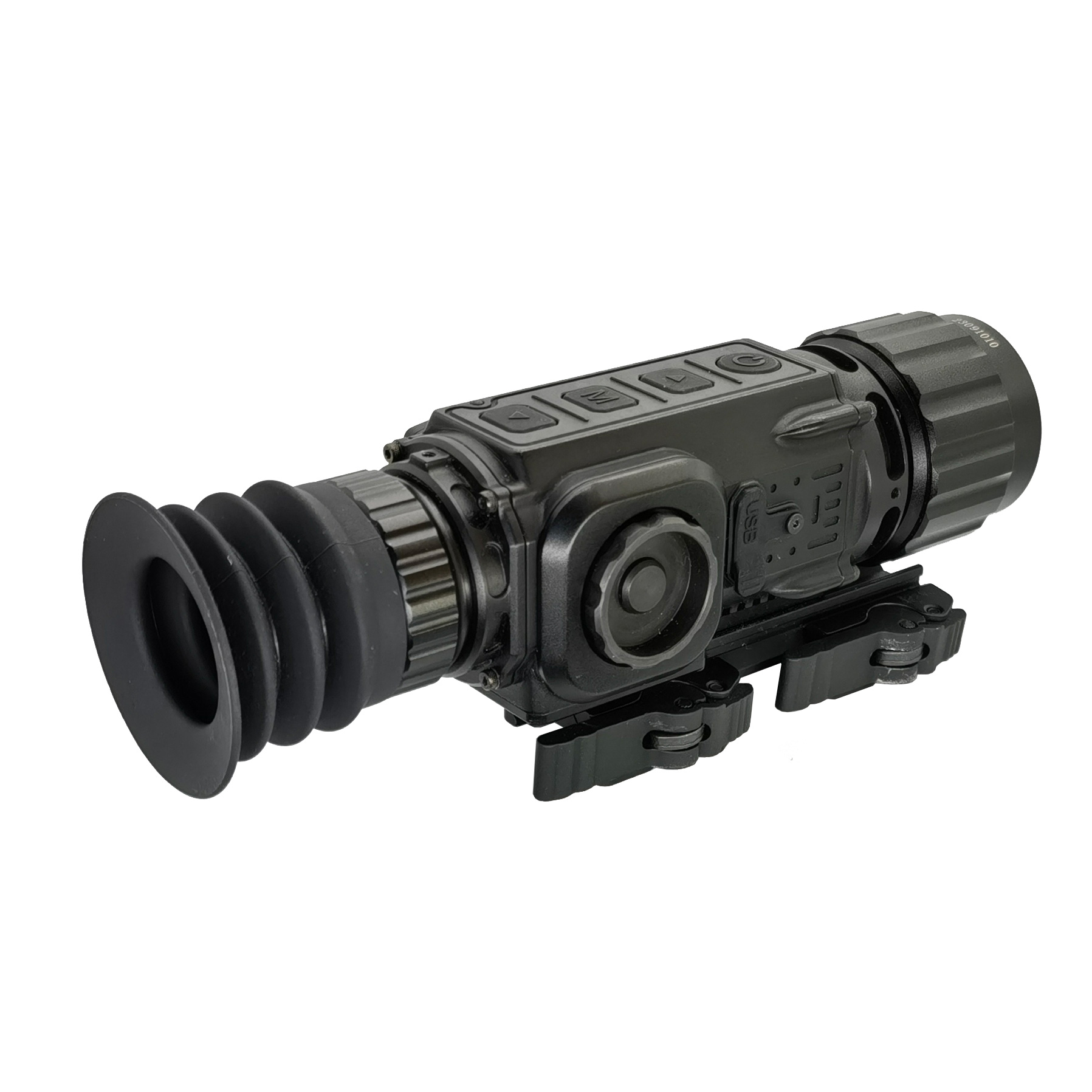

STA-TS6 Thermal Rifle Scope

STA-TS6 thermal imaging Rifle Scope has built-in enhancement algorithm, high infrared image quality, standard Piccadini rail, easy installation and disassembly, small size, light weight, low power consumption, suitable for night hunting, outdoor sports, etc.

Infrared :640x512
Infrared lens:35mm、50mm、75mm(Optional)
Laser Rangefinder:5-1200m(Optional)

Details





Features of STA-TS6 Thermal Rifle Scope



● Built-in enhancement algorithm, high infrared image quality;

● Standard Piccadini guide rail, easy to install and remove;

● Small volume, light weight, low power consumption;

● Suitable for night hunting, outdoor sports, etc.



Applications of STA-TS6 Thermal Rifle Scope



Suitable for night hunting, outdoor sports, etc.



Specifications of STA-TS series Thermal Rifle Scope



Model

STA-TS3

STA-TS6

Outdoor detector type

Non-refrigeration focal plane

Resolution ratio

384x288

640x512

Work band

8 μm ~ 14 μm

Like a meta size

12 μm

Infrared lens

35mm、50mm、75mm(Optional)

The focus mode

hand movement

Display mode

Color OLED, monocular image finder


Black hot / white hot

power supply mode

CR123A Battery, 4 knots

Battery hours

Disseal 4 hours

Identify distance

800 m for medium trucks; 400 m for people

Memory

5000, pictures and 1 hour video

Install the interface

Piccadini guide track

Weight

600 g (including battery)

Dimensions (LWH)

≤ 200mm ×55mm×70mm

Electrical interface

Type-C

Working temperature

-40 o C ~ + 55 o C

Storage temperature

-55 o C ~ + 70 o C

Optional function

laser ranging

Range

5-1200m



Note: All parameters, body shape, and ranging range can be customized.
