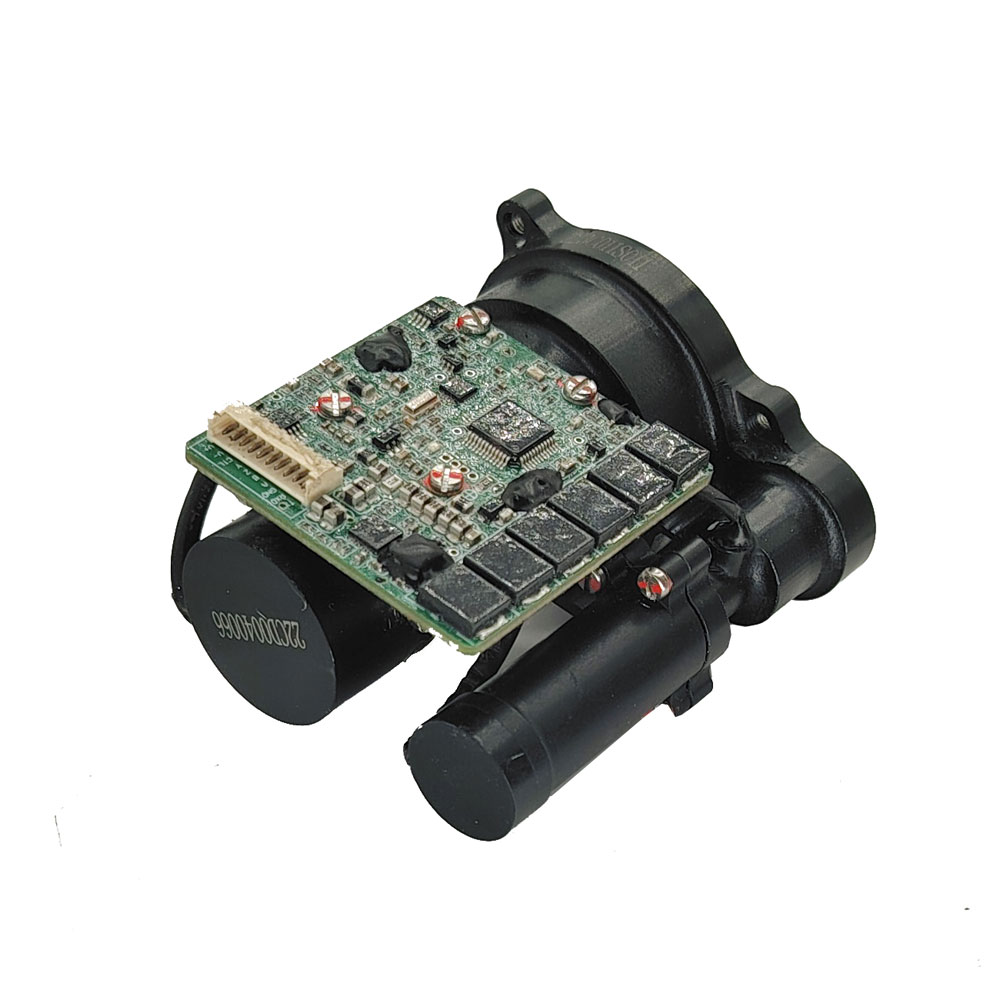

Features of STA-D0912Y Laser Rangefinder module

Safe and harmless to eyes
●Using 1535nm pump Q-switched erbium glass laser,safe for eyes.
●High reliability and long service life.

Easy to operate and secondary development
●Full duplex RS422 electrical interface,equipped with instruction set and communication protocol,convenient user secondary development.

Exchange optimization
●With its very small and ultra-light design and optimized power consumption,the STA-D0912Y is ideal for a variety of handheld devices,weapon mounting applications,portable thermal imaging systems and lightweight sensor suites for use in UAV or UGV.

Large measuring range and high precision
●Maximum measuring range ≥ 16km (Typical large target)

 ●Large target range≥ 12km(White wall)
●Measurement range of 2.3m × 2.3m vehicles ≥ 9km(NOTO)

●Ranging accuracy ±1m.High precision,more accurate distance measurement results.
●Weight ≤ 102g.

Applications of STA-D0912Y Rangefinder Module

Product features

Measuring sensor

● Integrated design of the whole structure, shock resistance, vibration resistance, high reliability, strong environmental adaptability;

● The use of unique erbium glass laser integrated configuration design and end-face multi-point sealing installation, high durability, long working life, eye safety;

● The internal interfaces of the circuit all adopt the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.

Product performance index for STA-D0912Y LRF Module

Structure installation interface
