STA-H0306X 3km Laser Rangefinder Module

ꁆ ꁇ

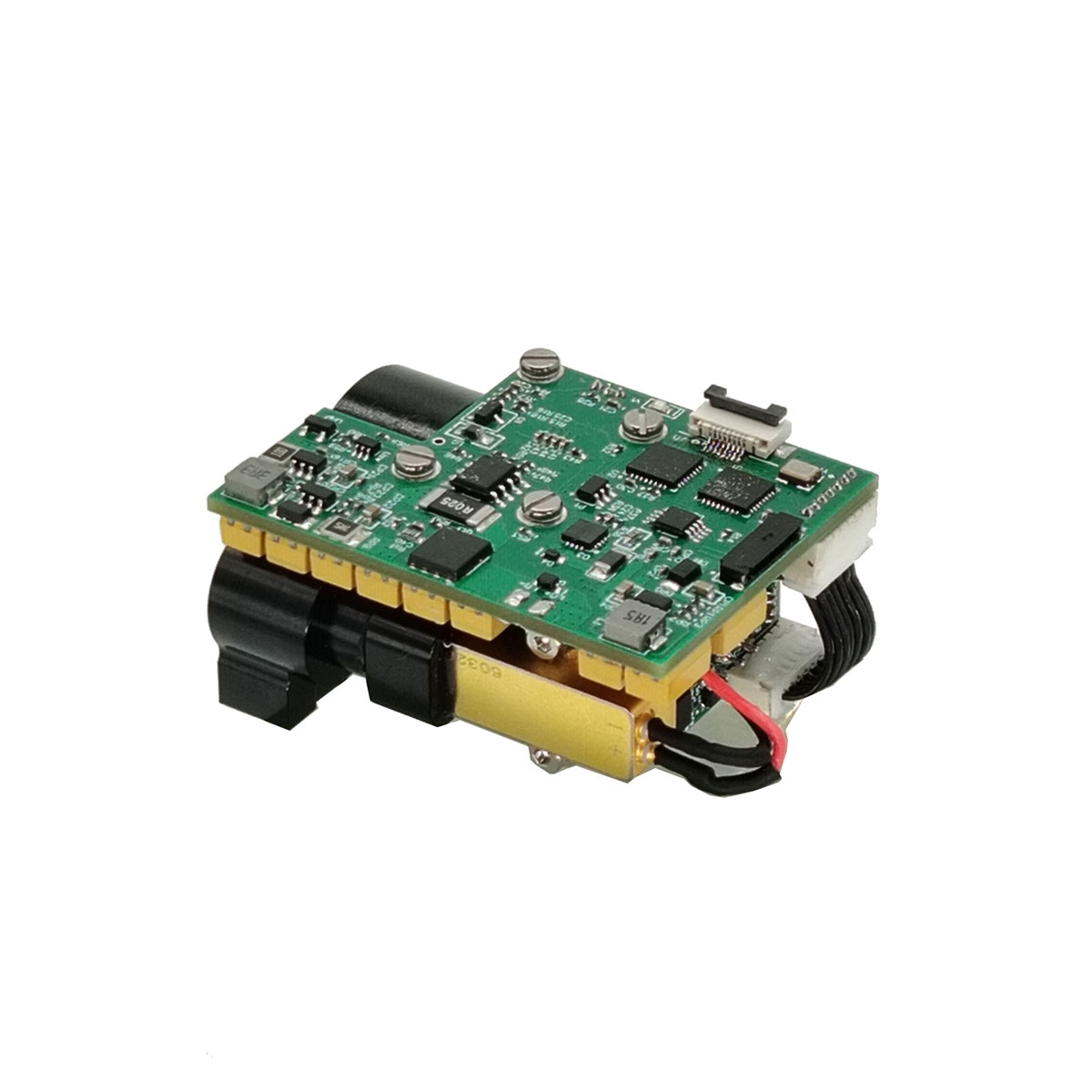

STA-H0306X adopts Jioptics' self-developed 1535nm human eye-safe erbium glass laser module, which is characterized by low power consumption, small size, light weight and high accuracy.

Maximum measuring range: 3000m (2.3x2.3m NATO targets) 6000 m (Large target)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 57g

Details

Features of STA-H0306X Miniature Laser Rangefinder Module

1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;

2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;

3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.

Applications of 3km Rangefinder Module

Specifications of STA-D0306X LRF Module

Item	Index
Model	STA-H0306X
Operating wavelength	1535nm ±10nm
Ranging range	20-6000m
Ranging capability	6000m	Typical Large target, visibility ≥ 16km
	3000m	Visibility ≥ 10km, target with 0.3 reflectivity for 2.3m × 2.3m NATO target
Communication Interface	RS422 / TTL(Customizable)
Humidity	≤ 60%
Ranging accuracy	±1m
Accuracy rate	≥98%
Divergence angle	≤0.5mrad
Ranging frequency	1~10hz
Size	≤48.5mm×36mm×26mm
Voltage	5V
Power consumption	Standby power consumption ≤1W. Rated power consumption ≤1.6W. Peak power consumption ≤4W
Working temperature	-40℃～+70℃
Storage temperature	-50℃～+75℃
Weight	≤57g
