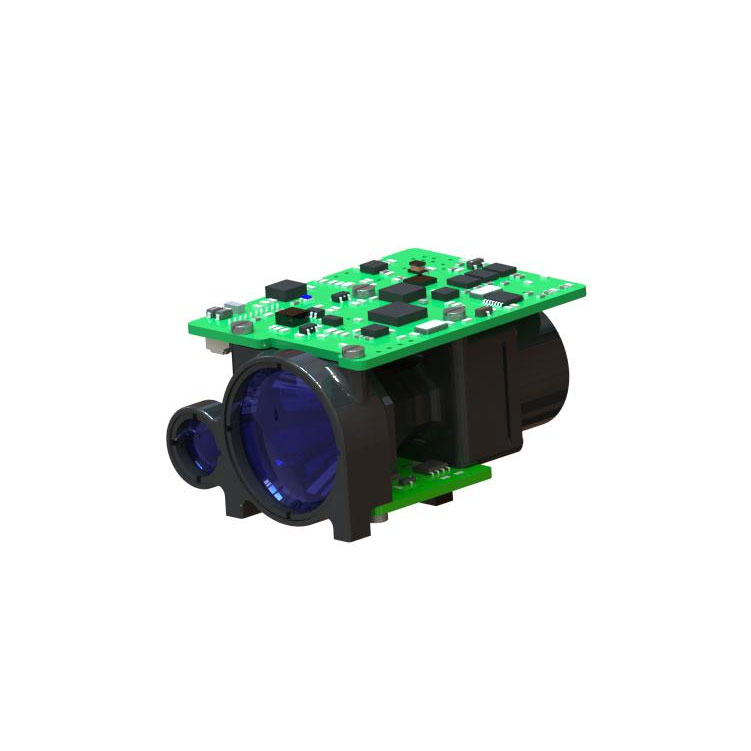

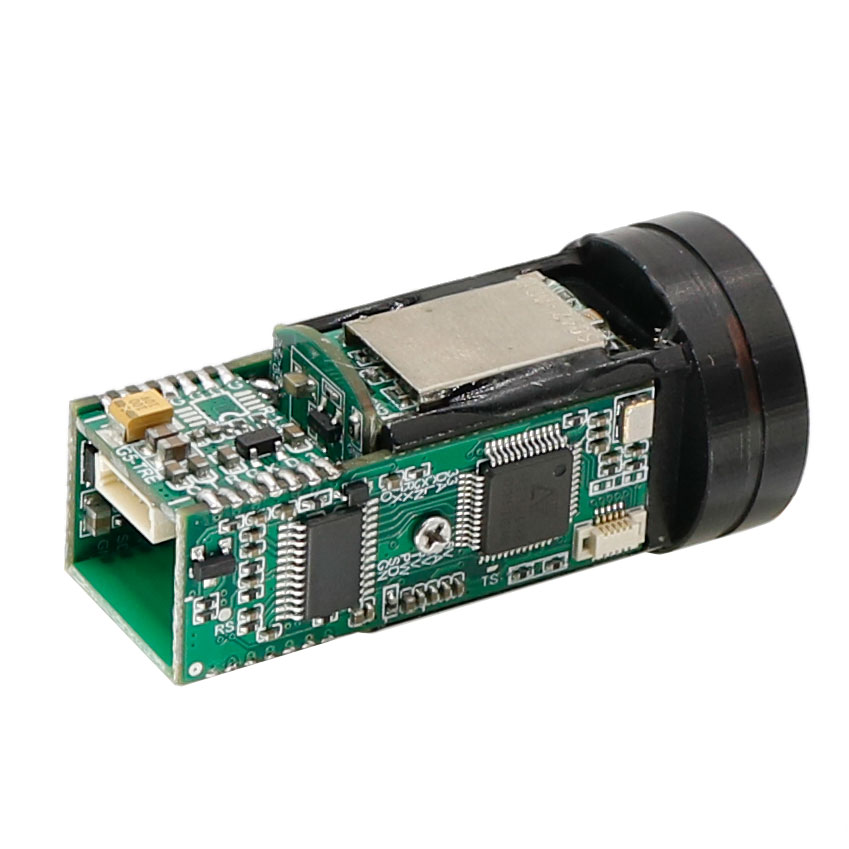

1200m Laser Rangefinder Module

STA012X uses a 905nm semiconductor eye safety laser with low power consumption, small size and high precision, which is suitable for handheld mobile devices, UAV pods and other equipment integration.

Measuring range ≥5-1200m(Tree)
Maximum measuring distance ≥1500m(Typical target)
Measuring accuracy ±1m
Measuring accuracy ≥98%
Weight ≤21 g

Details


STA012X Laser Range Finder Module Features



Safe and harmless to eyes
Using 905nm semiconductor laser, safe for eyes.
High reliability and long service life.



Easy operation and secondary development
Adopt TTL interface, equipped with instruction set and communication protocol, which is convenient for users to develop twice.



Exchange Optimization
With its very small size and ultra-light design and optimized power consumption, the STA012X is ideal for a variety of handheld devices, portable thermal imaging systems and lightweight sensor kits.



Large measuring range and high precision
Maximum measuring range ≥ 1500m (white wall)
Measuring tree range ≥ 1200m
Distance measurement accuracy ± 1m. High precision, more accurate distance measurement results.
Weight ≤ 20g. Light weight and small size.



Applications of STA012X Rangefinder Module





Product features



Integrated design of the whole machine structure, small size, light weight, anti-shock vibration, high reliability, strong environmental adaptability;
The use of low-power semiconductor lasers and unique algorithms to ensure high operating frequency and long measurement range to achieve accurate measurement;
Using advanced transmitting antenna shaping technology, good beam quality, high coupling efficiency, strong optical axis stability, and good adaptability to severe weather.





Product performance index



Project

Technical parameter

Laser wave length

905nm

Range range

5m-1200m

Ranging accuracy

±0.5m

Distance measurement frequency

1Hz

Quadrant measurement rate

≥98%

False alarm rate

≤1%

Angle of divergence

≤6mrad

Receive caliber

18mm

Communication interface

UART-TTL

Supply voltage

3.3-5V

Work power consumption

1.1W

Standby power consumption

≤500mW

Size

Ф23mm 48mm

Weight

≤20g

Operating temperature range

-15℃ -+60℃

Storage temperature range

-55℃ -+70℃





Interface

Electrical interface



Pin

Definition

Explain

1

GND

Power anode-

2

5V

Power supply cathode + 5V / 1A power supply

3

NC

Hang in the air

4

TXD

The module serial port sends the TTL level

5

RXD

The module serial port receives the TTL level

6

EN#

Module enabling pins, 0V low level enabled, 5V high level disability

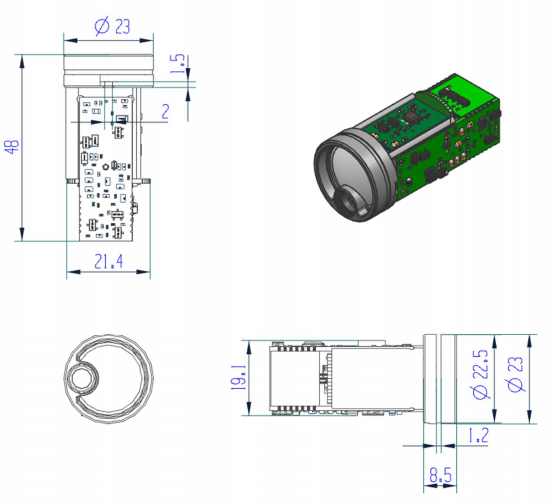

Mechanical interface
