Features of STA-D0508X Laser Rangefinder module

Safe and harmless to eyes
●Using 1535nm pump Q-switched erbium glass laser, safe for eyes.
●High reliability and long service life.

Easy to operate and secondary development
●Full duplex RS422 electrical interface, equipped with instruction set and communication protocol, convenient user secondary development.

Exchange optimization
●With its very small and ultra-light design and optimized power consumption, the STA-D0508X is ideal for a variety of handheld devices, weapon mounting applications, portable thermal imaging systems and lightweight sensor suites for use in UAVs or UGVs.

Large measuring range and high precision
●Maximum measuring range ≥ 8km (White wall)
●Measurement range of 2.3m × 2.3m vehicles ≥ 5km

●Ranging accuracy ±1m. High precision, more accurate distance measurement results.
●Weight ≤ 85g. Light weight and small size.

Applications of STA-D0508X Rangefinder Module

Product features

●Integrated design of the whole machine structure, impact resistance, vibration resistance, high reliability, strong environmental adaptability, STA-D0508X circuit sub-warehouse design, power isolation design, strong electromagnetic compatibility, suitable for handheld mobile devices, UVA pods and other optoelectronic integration;
●Using small field of view, non-thermal receiving optical design technology, with good optical noise suppression ability, close range performance and high and low temperature optical performance;
●The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.

Specifications of STA-D0508X Laser Rangefinder Module

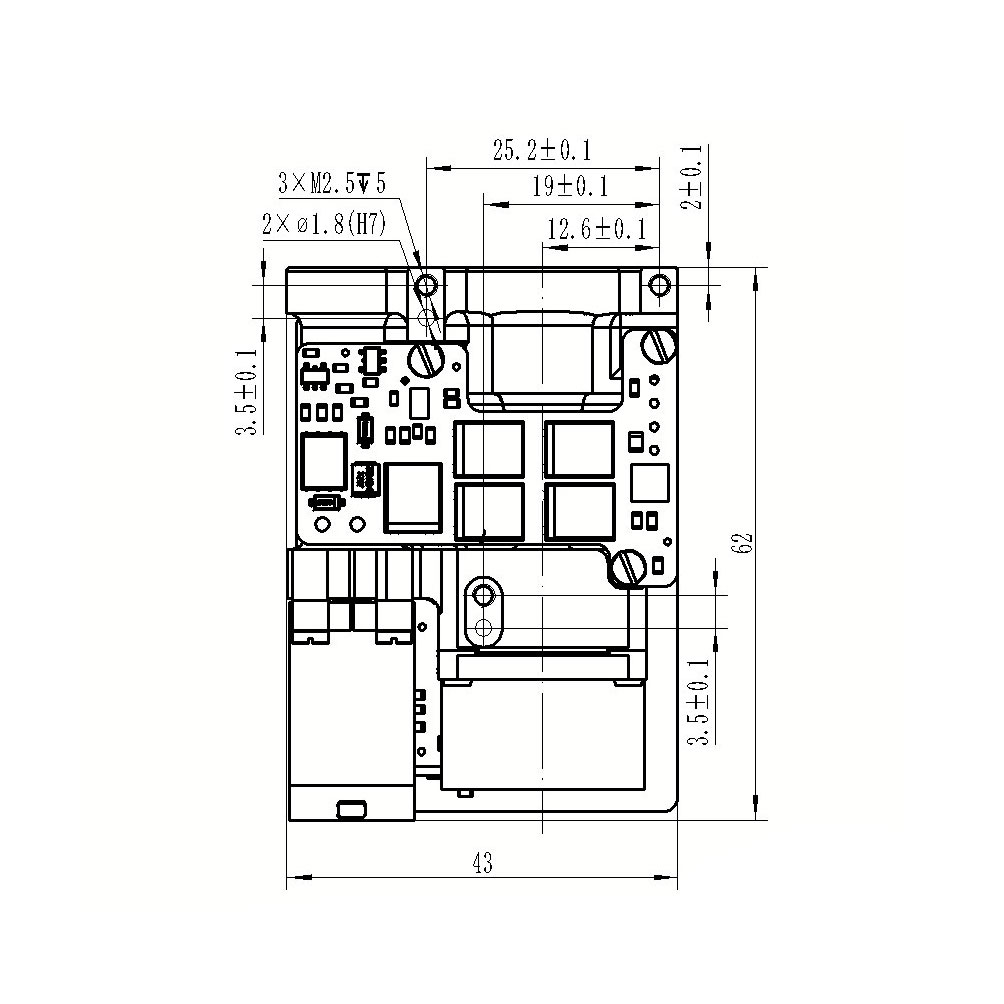

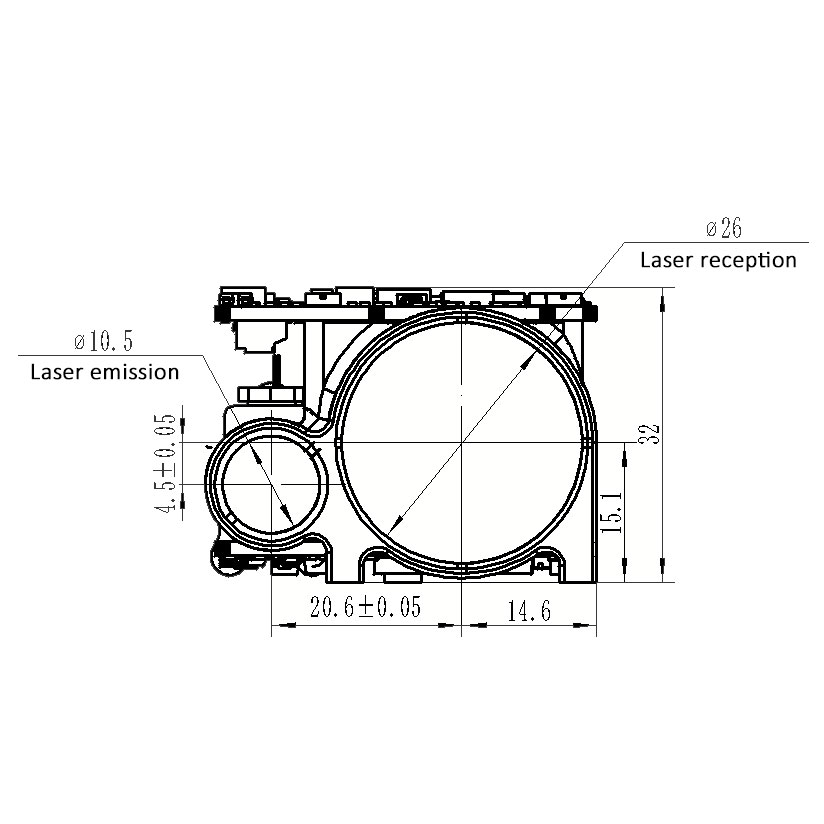

Structure installation interface
