7km Rangefinder Module

STA0710X adopts the 1535nm human eye safety erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, small size, high precision and long measurement distance.

Measuring range≥7km (2.3x2.3m vehicle)
Max measuring range≥10km(Typical target)
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤130g

Details





Features of STA0710X Laser Rangefinder module



Safe and harmless to eyes
Using 1535nm pump Q-switched erbium glass laser,safe for eyes.
High reliability and long service life.



Easy to operate and secondary development
Full duplex RS422 electrical interface,equipped with instruction set and communication protocol,convenient user secondary development.



PRODUCT HIGHLIGHTS
Lightweight with only 130 g
Powerful measuring up to 10 km
Withstands harshest weapon shocks up to 1600g
Extremely low power consumption
High measurement accuracy of 1 m
Wide operational temperature range from –40° C to +65° C



Large measuring range and high precision
Maximum measuring range ≥ 10km (wall)
Measurement range of 2.3m × 2.3m vehicles ≥ 7km

Ranging accuracy ±1m.High precision,more accurate distance measurement results.
Weight ≤ 130g.



Applications of STA0710X Rangefinder Module





APPLICATIONS


Weapon mounted devices
Handheld devices
Observation and surveillance systems
Sensor suites for UAV and UGV





Product performance index





PERFORMANCE

Maximum range

10000m

Range performance on beamfilling target

reflectivity: 60 %, observer visibility 25 km

8000m

Range performance on 2.3 × 2.3 m target size

reflectivity: 30 %, observer visibility 25 km

7000m

Range performance on 1 × 1 m target size

reflectivity: 10 %, observer visibility 25 km

6000m

Minimum range

20m

Range accuracy

±1m

Repetition rates

1-10Hz

Multiple target detection

3 targets

Wavelength

1535nm

Divergence

0.5mrad

Eye safety per IEC 60825-1

Laser Class 1

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

-40℃~+65℃

Storage temperature range

-50℃~+75℃

Shock (half sine) at 0.6 ms in x-, y- and z-direction

1000G

PHYSICAL CHARACTERISTICS

Weight

≤130g

Dimensions (length/width/height)

≤87mm*58mm*43mm

INTERFACES

Communication interface

UART (3.3 V LVCMOS levels)  RS422

Power supply

4.5v~12v

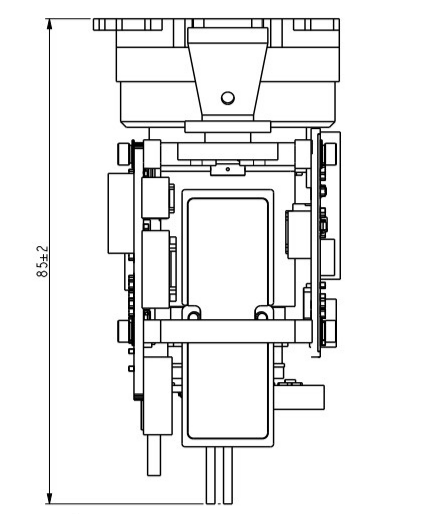

Dimensions
