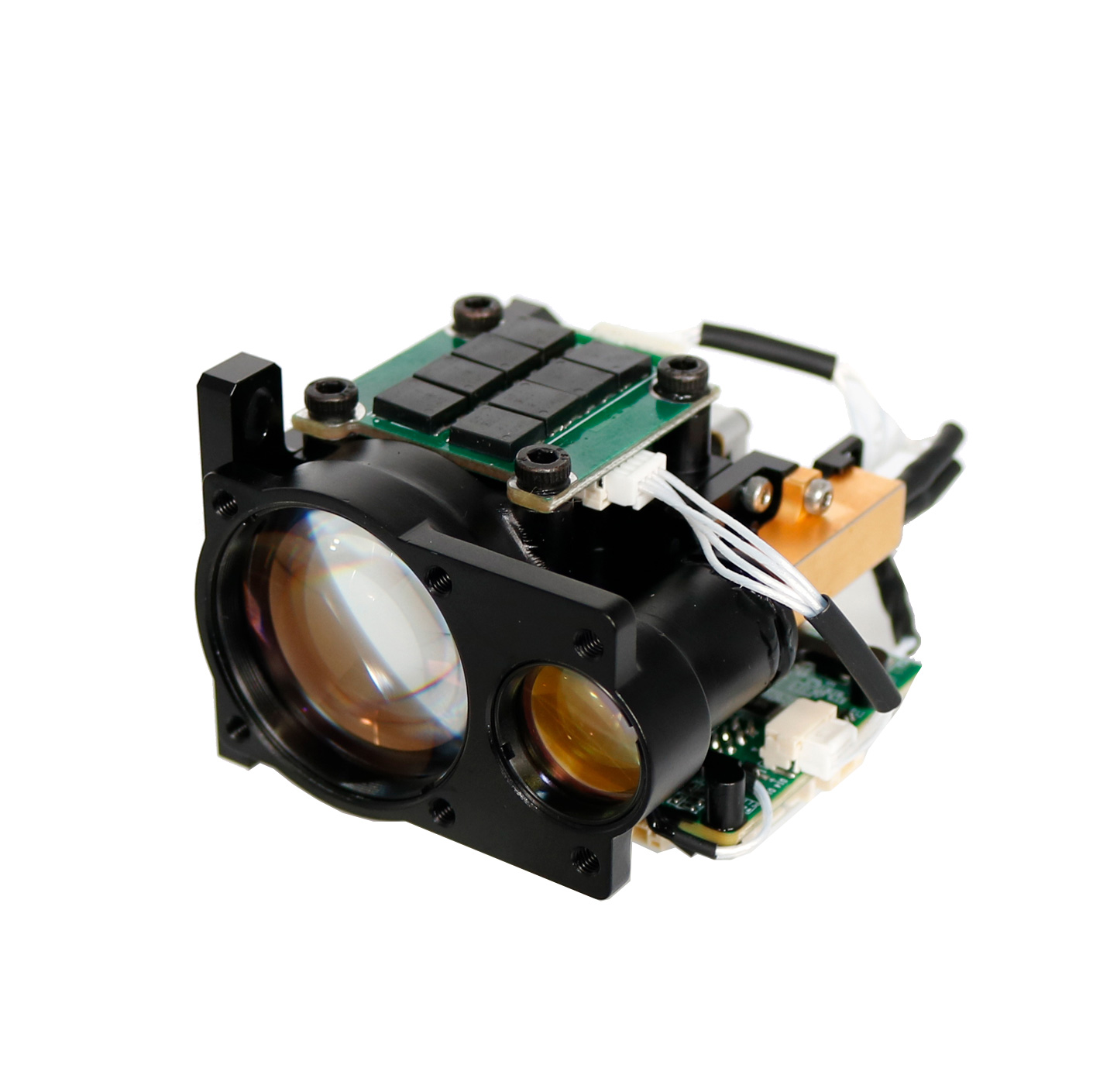

5km Rangefinder Module
Measuring range≥5km (2.3x2.3m vehicle)
Max measuring range≥7km（Typical target）
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤130g
Features of STA0507X Laser Rangefinder module
Safe and harmless to eyes
●Using 1535nm pump Q-switched erbium glass laser,safe for eyes.
●High reliability and long service life.
Easy to operate and secondary development
●Full duplex RS422 electrical interface,equipped with instruction set and communication protocol,convenient user secondary development.
PRODUCT HIGHLIGHTS
●Lightweight with only 130 g
●Powerful measuring up to 7 km
●Withstands harshest weapon shocks up to 1600g
●Extremely low power consumption
●High measurement accuracy of 1 m
●Wide operational temperature range from –40° C to +65° C
Large measuring range and high precision
●Maximum measuring range ≥ 7km (wall)
●Measurement range of 2.3m × 2.3m vehicles ≥ 5km
●Ranging accuracy ±1m.High precision,more accurate distance measurement results.
●Weight ≤ 130g.
Applications of STA0507X Rangefinder Module
APPLICATIONS
●Weapon mounted devices
●Handheld devices
●Observation and surveillance systems
●Sensor suites for UAV and UGV
Product performance index
|
PERFORMANCE |
|
|
Maximum range |
7000m |
|
Range performance on beamfilling target reflectivity: 60 %, observer visibility 25 km |
6000m |
|
Range performance on 2.3 × 2.3 m target size reflectivity: 30 %, observer visibility 25 km |
5000m |
|
Range performance on 1 × 1 m target size reflectivity: 10 %, observer visibility 25 km |
3000m |
|
Minimum range |
20m |
|
Range accuracy |
±1m |
|
Repetition rates |
1-10Hz |
|
Multiple target detection |
3 targets |
|
Wavelength |
1535nm |
|
Divergence |
0.5mrad |
|
Eye safety per IEC 60825-1 |
Laser Class 1 |
|
ENVIRONMENTAL CHARACTERISTICS |
|
|
Operating temperature range |
-40℃~+65℃ |
|
Storage temperature range |
-50℃~+75℃ |
|
Shock (half sine) at 0.6 ms in x-, y- and z-direction |
1000G |
|
PHYSICAL CHARACTERISTICS |
|
|
Weight |
≤130g |
|
Dimensions (length/width/height) |
≤87mm*58mm*43mm |
|
INTERFACES |
|
|
Communication interface |
UART (3.3 V LVCMOS levels) RS422 |
|
Power supply |
4.5v~12v |
Dimensions
