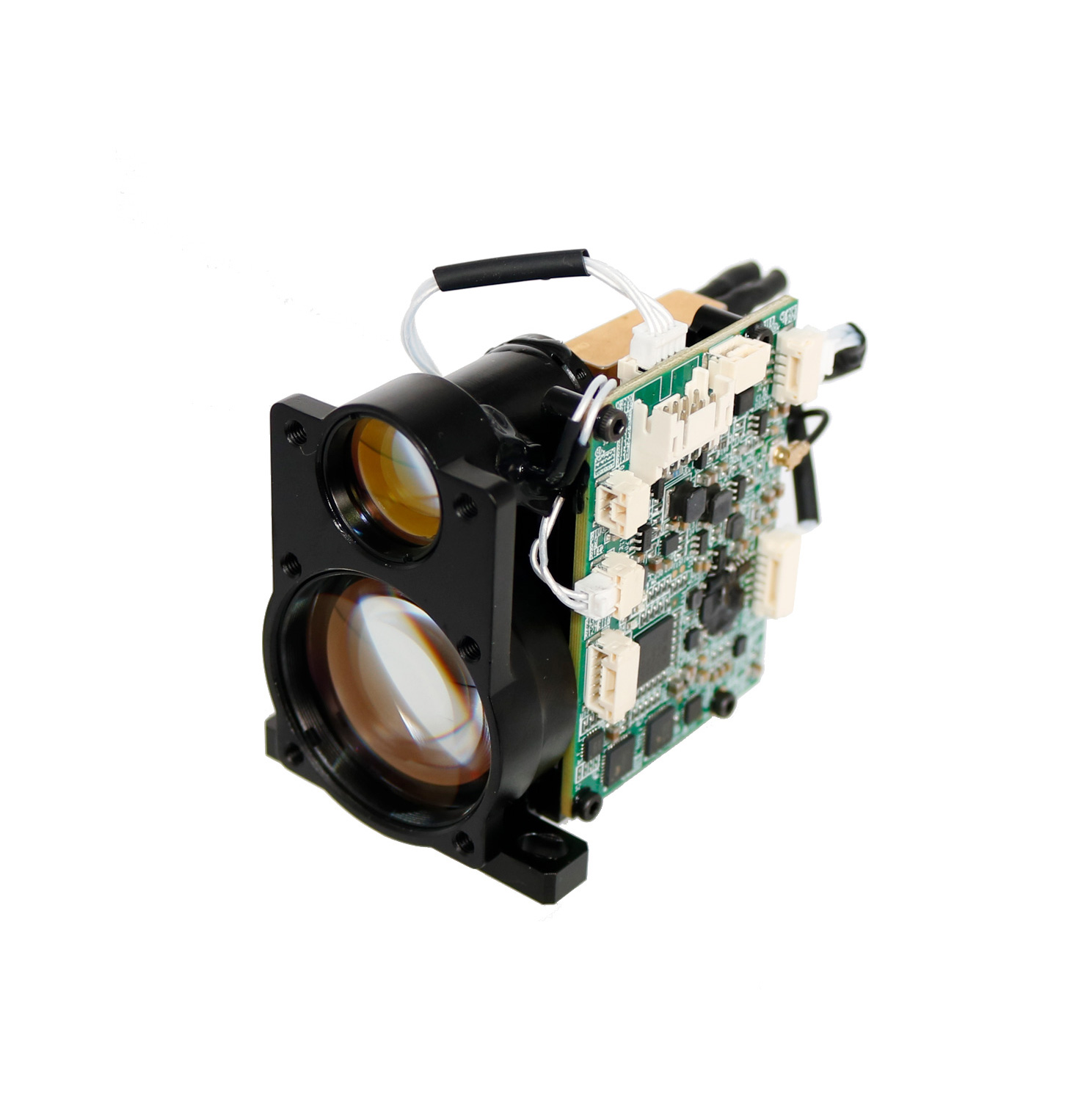

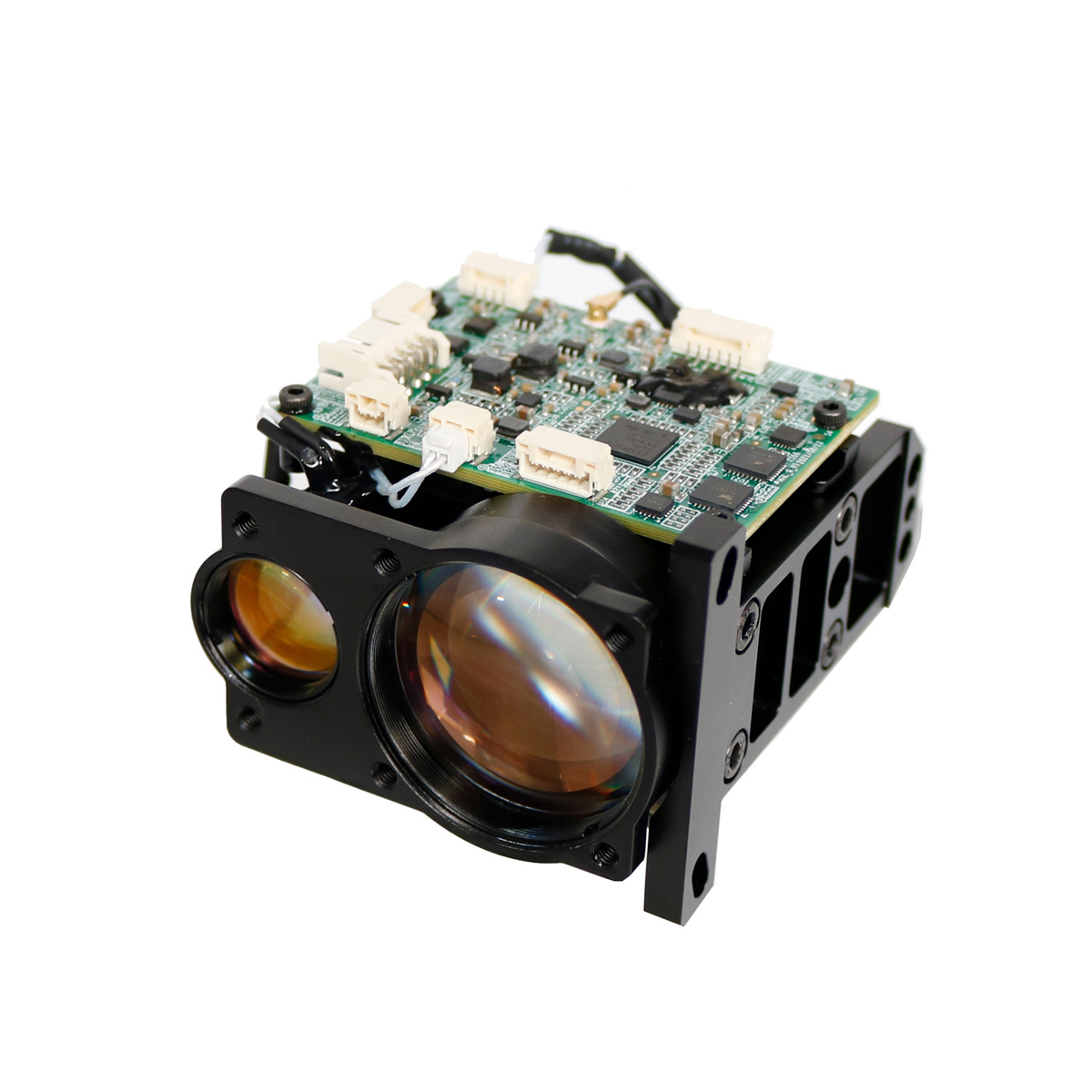

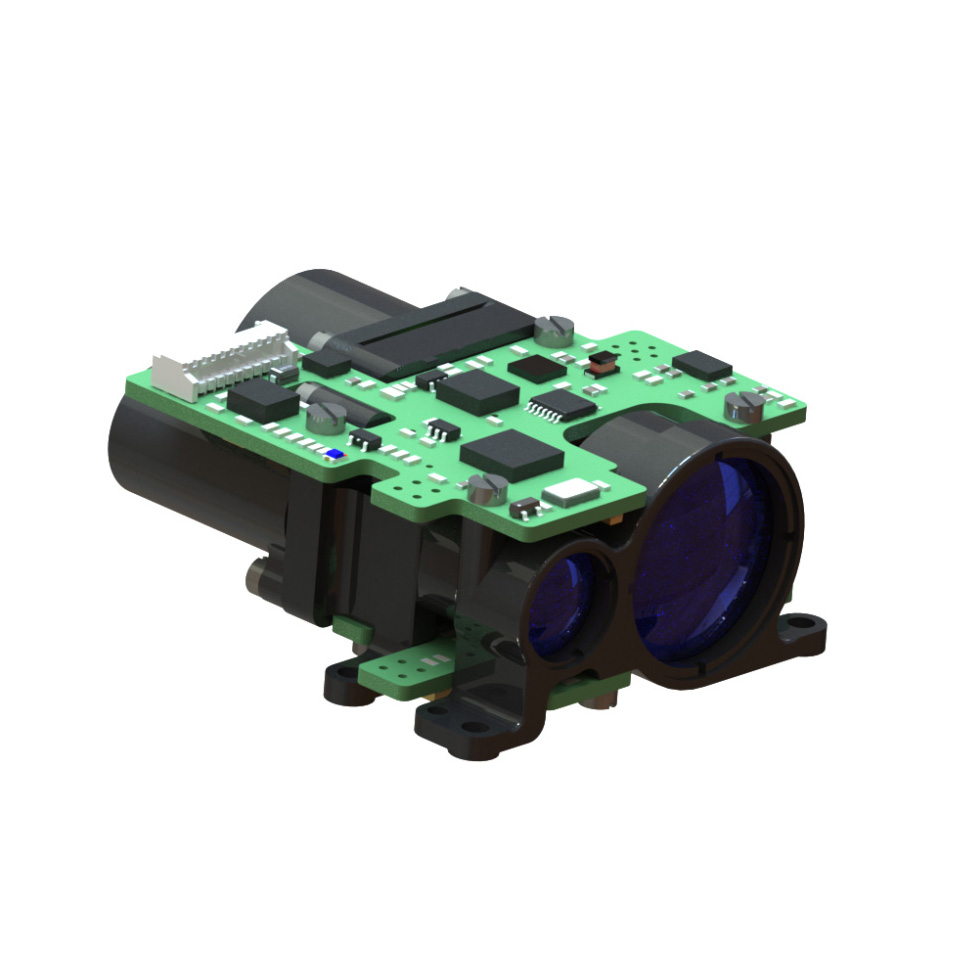

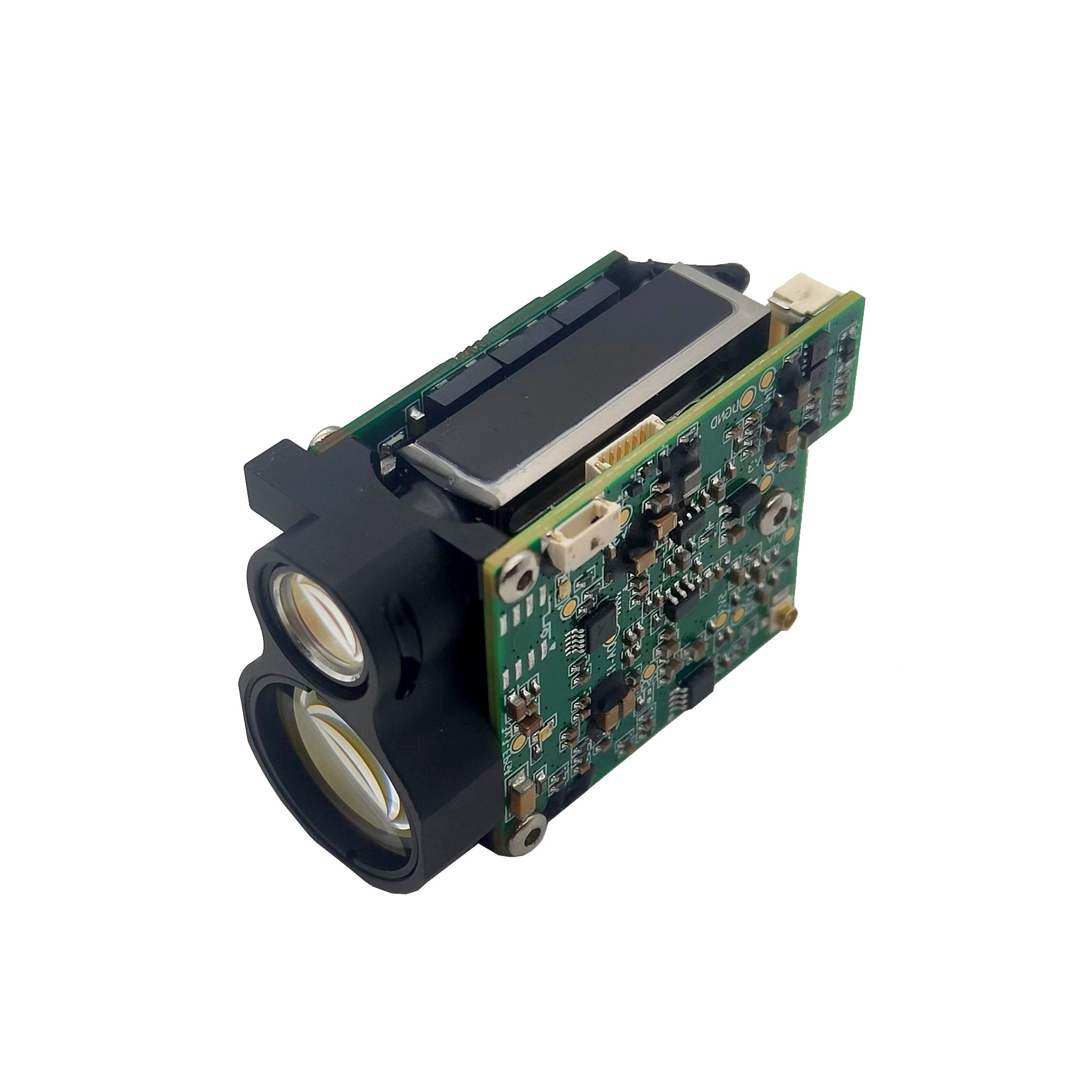

3km Rangefinder Module
Measuring range≥3000m (2.3x2.3m Car)
Max measuring range≥4000m（Building）
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤32g
Features of STA0304 Laser Rangefinder module
Safe and harmless to eyes
●Using 1535nm pump Q-switched erbium glass laser, safe for eyes.
●High reliability and long service life.
Easy to operate and secondary development
●Full duplex RS422 electrical interface, equipped with instruction set and communication protocol, convenient user secondary development.
Exchange optimization
●With its very small and ultra-light design and optimized power consumption, the STA0304 is ideal for a variety of handheld devices, weapon mounting applications, portable thermal imaging systems and lightweight sensor suites for use in UAVs or UGVs.
Large measuring range and high precision
●Maximum measuring range ≥ 4km (wall)
●Measurement range of 2.3m × 2.3m vehicles ≥ 3km
●Ranging accuracy ±1m. High precision, more accurate distance measurement results.
●Weight ≤ 35g. Light weight and small size.
Applications of STA0304 Rangefinder Module
Performance parameter
|
Number |
Project name |
Performance index |
|
|
1 |
Human eye safety level |
Class1/1M |
|
|
2 |
laser wave length |
1535±5nm |
|
|
3 |
Laser divergence Angle |
0.6 mrad |
|
|
4 |
Receive caliber |
Φ16.5mm |
|
|
5 |
Receive field-of-view angles |
~4.9 mrad/0.3° |
|
|
6 |
Maximum range |
Typical target |
7000m |
|
Range measurement (30% reflectivity, 8 Km visibility) |
building |
≥4000m； |
|
|
Vehicle (2.3×2.3m) |
≥3000m； |
||
|
Person (1.7×0.5m) |
≥2000m； |
||
|
Uav (0.3×0.2m) 1 |
≥1000m ； |
||
|
7 |
Minimum range |
20m |
|
|
8 |
ranging accuracy |
±1m |
|
|
9 |
measuring frequency |
1~10Hz |
|
|
10 |
range resolution |
≤20m |
|
|
11 |
angular resolution |
≤1mil |
|
|
12 |
Accuracy rate |
≥98% |
|
|
13 |
false alarm rate |
≤1% |
|
|
14 |
Multi-target detection |
3 (Maximum number) |
|
|
15 |
data interface |
UART（TTL_3.3V） |
|
|
16 |
service voltage |
DC 4.5~16 V |
|
|
17 |
Standby power consumption |
≤1mW |
|
|
18 |
Average power consumption |
≤2.5W@10Hz |
|
|
19 |
Peak power consumption |
≤7W@12V |
|
|
20 |
weight |
32±1g |
|
|
21 |
Dimensions (LWH) |
48×30.5×21mm |
|
|
22 |
working temperature |
-40 ~ +70 ℃ |
|
|
23 |
storage temperature |
-55 ~ +75 ℃ |
|
|
24 |
lash |
1600g，1ms |
|
|
25 |
vibrate |
5~50~5Hz, 1 x frequency range / min,2.5g |
|
|
26 |
temperature ictus |
+70℃、-50℃ |
|
|
27 |
reliability |
MTBF≥1500h |
|
|
28 |
function |
First and last target / multiple target ranging / distance pass / external power control / laser cumulative number |
|
|
29 |
response time |
≤950ms； |
|
5 User interface
5.1 Electrical interface
User electrical interface: UART(TTL_3.3V)
Connector model: Changjiang connector: A1257WR-S-6P, the specific definition is shown in the following table:
6,……........... ,1
|
pin |
definition |
explain |
|
1 |
Power is |
Power supply, 4.5~16V |
|
2 |
Power negative |
Power supply, ground |
|
3 |
POWER_ON |
Module power switch, TTL_3.3V level; Module open (> 2.7V) and module closed (<0.3V); |
|
4 |
UART_TX |
Serial port transmitter, TTL_3.3V level |
|
5 |
UART_RX |
Serial port receiving end, with a TTL_3.3V level |
|
6 |
GND |
String |
5.2 Overall dimensions
STA0304 The outer dimension of the ranging module and the user installation interface are shown in the figure below.
