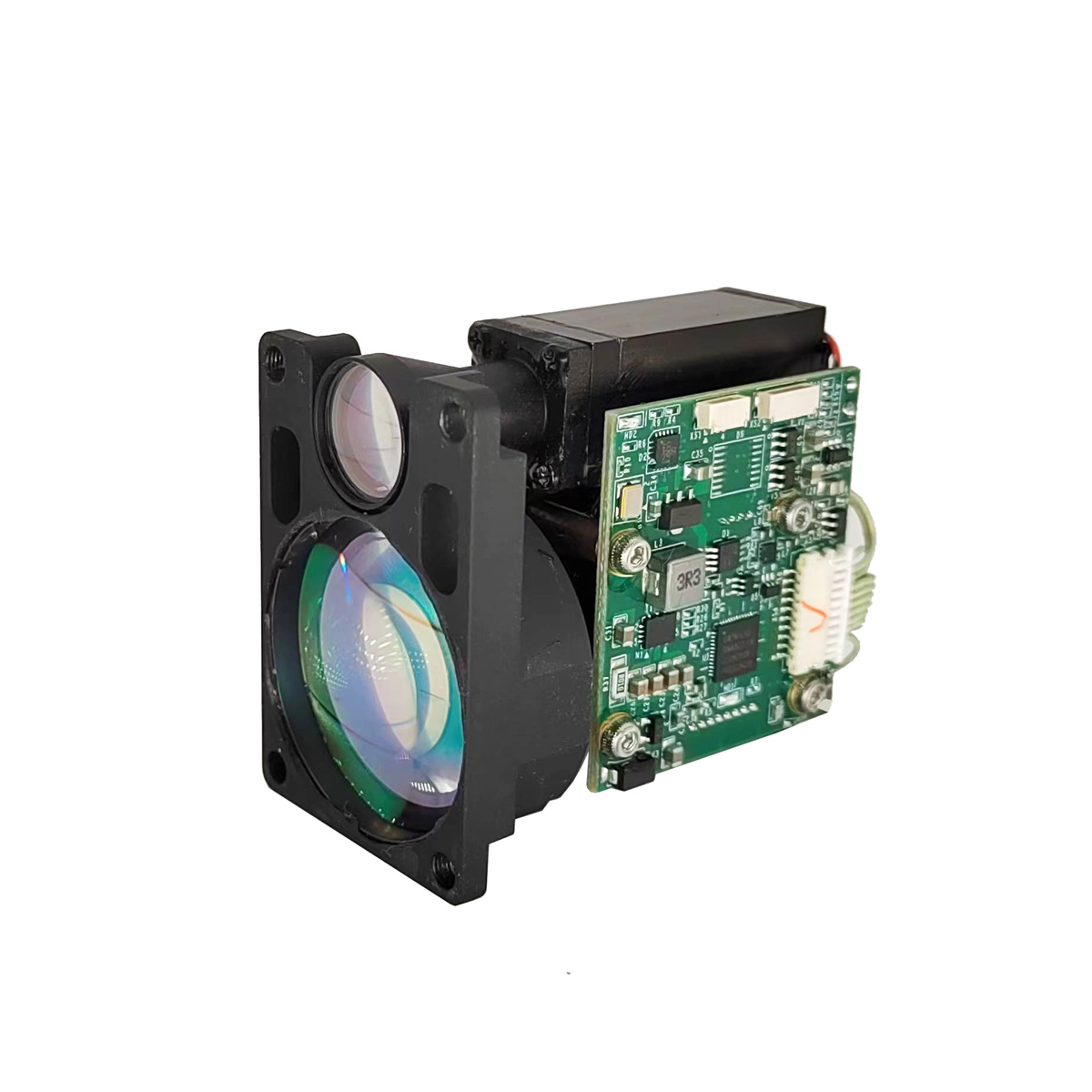

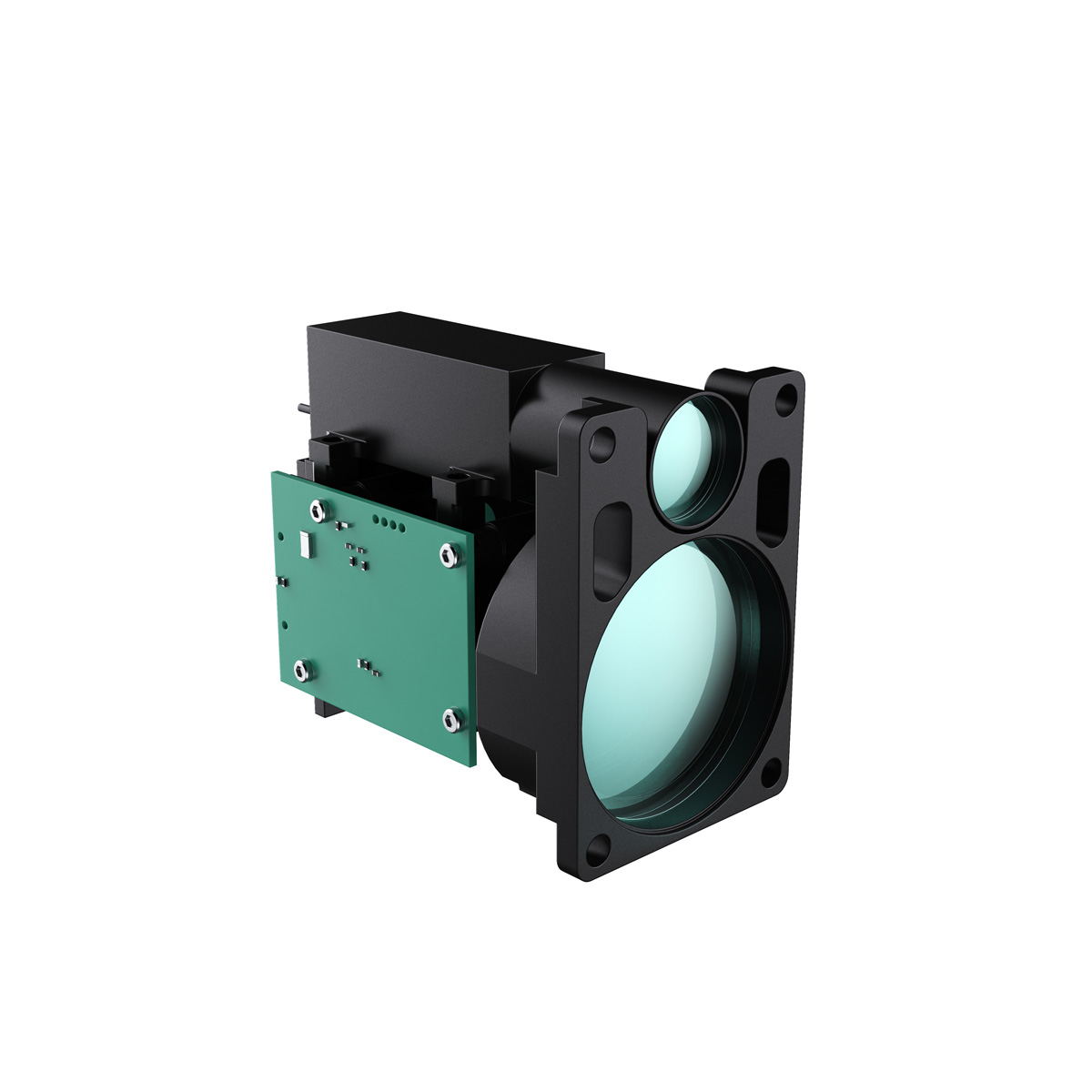

8km Rangefinder Module
Measuring range≥8km (2.3x2.3m vehicle)
Max measuring range≥16km（Typical target）
Ranging accuracy ±0.25-2m
Measurement accuracy ≥ 98%
Weight ≤89g
Features of STA0816 Laser Rangefinder module
Safe and harmless to eyes
●Using 1535nm pump Q-switched erbium glass laser,safe for eyes.
●High reliability and long service life.
Easy to operate and secondary development
●Full duplex RS422 electrical interface,equipped with instruction set and communication protocol,convenient user secondary development.
Large measuring range and high precision
●Maximum measuring range ≥ 16km (Typical target)
●Measurement range of 2.3m × 2.3m vehicles ≥ 8km
●Ranging accuracy ±0.2-2m.High precision,more accurate distance measurement results.
●Weight ≤ 89g.
Applications of STA0816 Rangefinder Module
APPLICATIONS
●Weapon mounted devices
●Handheld devices
●Observation and surveillance systems
●Sensor suites for UAV and UGV
Product performance index
| Model | STA0816 | |
|
Laser wavelength |
1535nm | |
|
Standby current |
0.01A (8V power supply) |
|
|
Working voltage |
4.5V~16V |
|
|
Quasi-side rate |
98% | |
|
False alarm rate |
1% | |
|
Measuring range |
30m-8000m |
Measure a 2.3x2.3 m vehicle, visibility 12km, 0.3 diffuse reflection target |
|
30m-16000m |
Large target, visibility of 25km, 0.3 diffuse target | |
|
Accuracy |
0.25m ~±2m |
|
|
service frequency |
1 Hz to 5 Hz, emergency response of 10Hz |
|
|
Distance measurement logic |
The first and last target |
|
|
Weight |
≤89g | |
| Size |
56×48×33mm |
|
|
Output interface |
RS422 | |
|
Keep in storage |
Storage life of 12 years |
|
|
Working temperature |
-40℃~+55℃ |
|
|
Storage temperature |
-50℃~+85℃ |
|

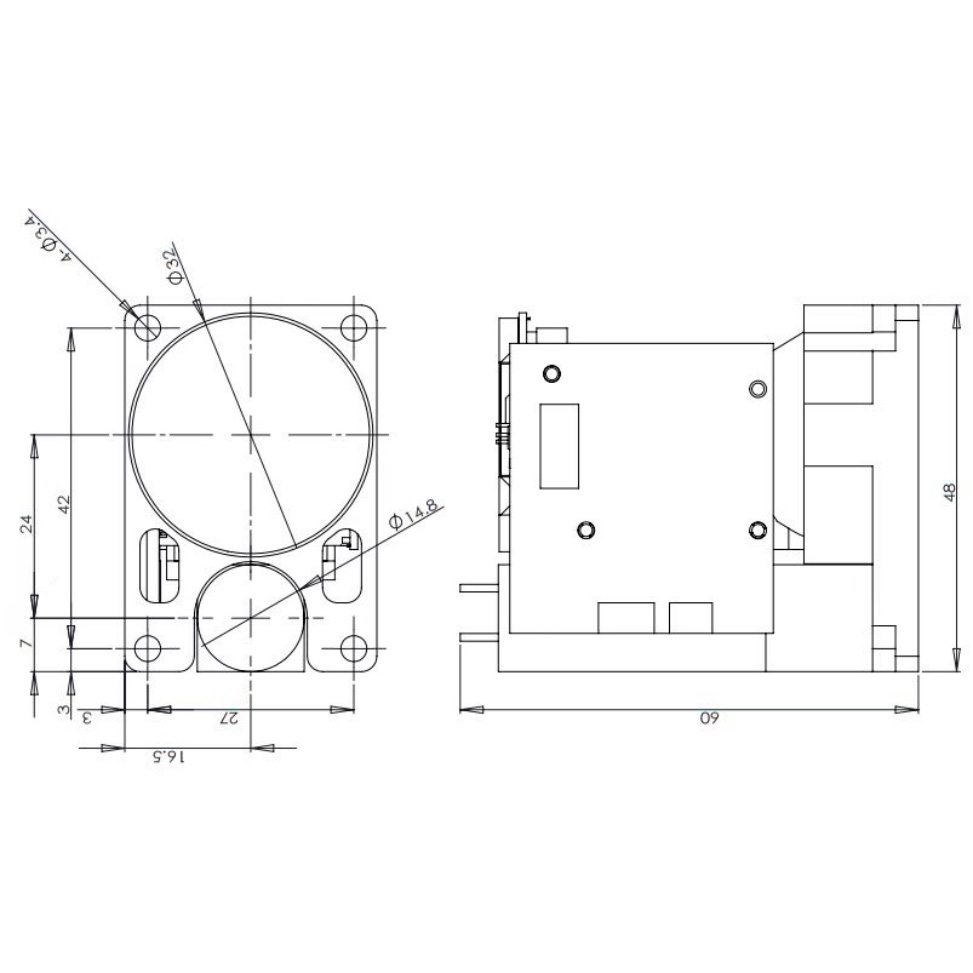

Dimensions
